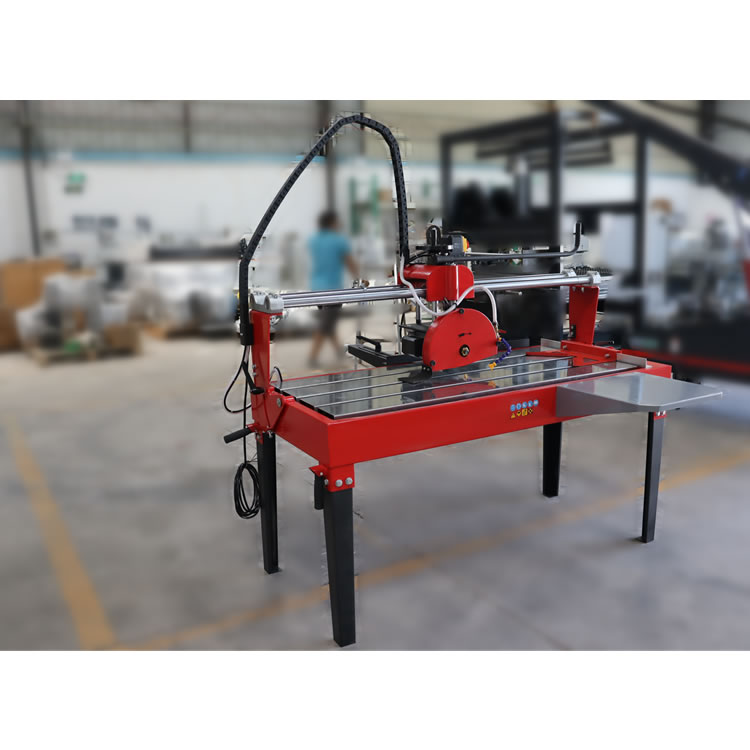

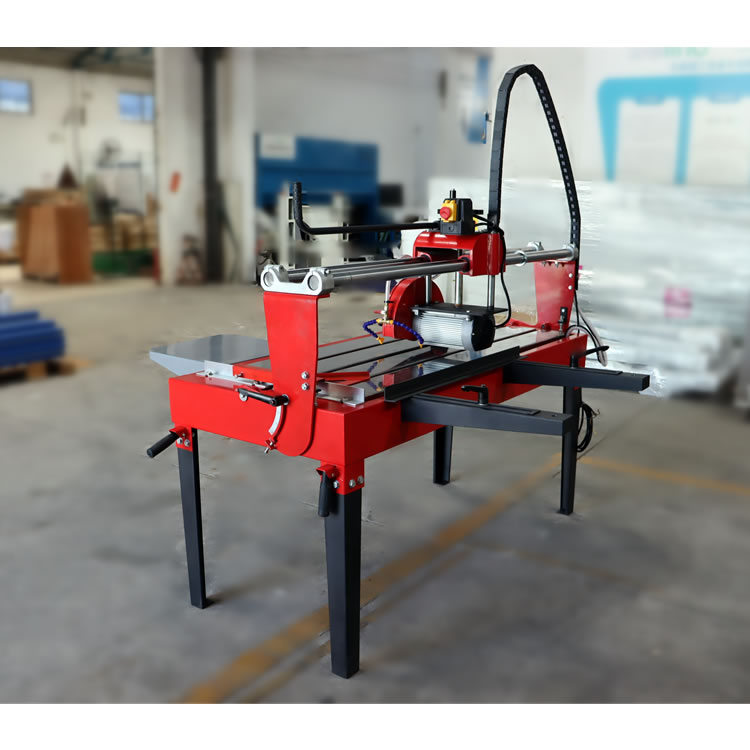

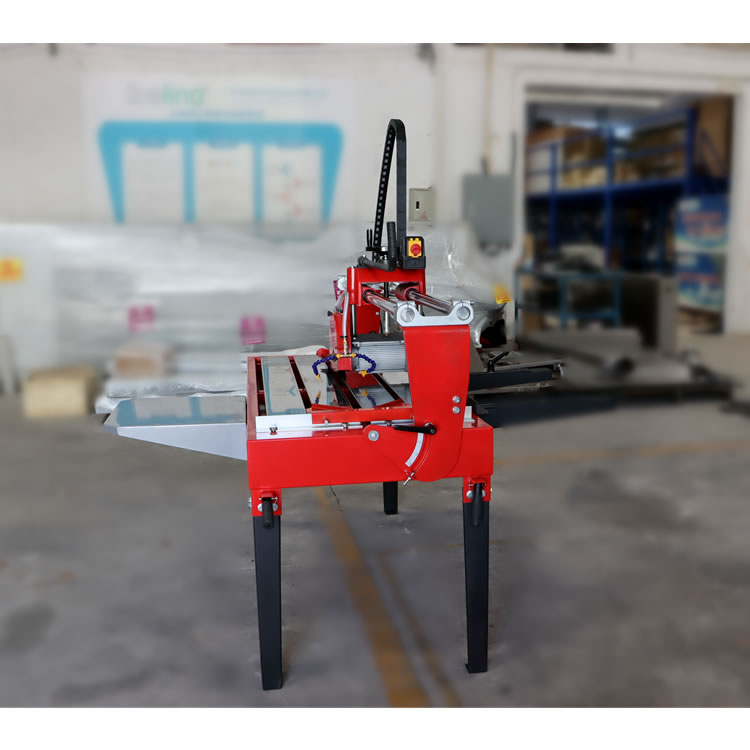

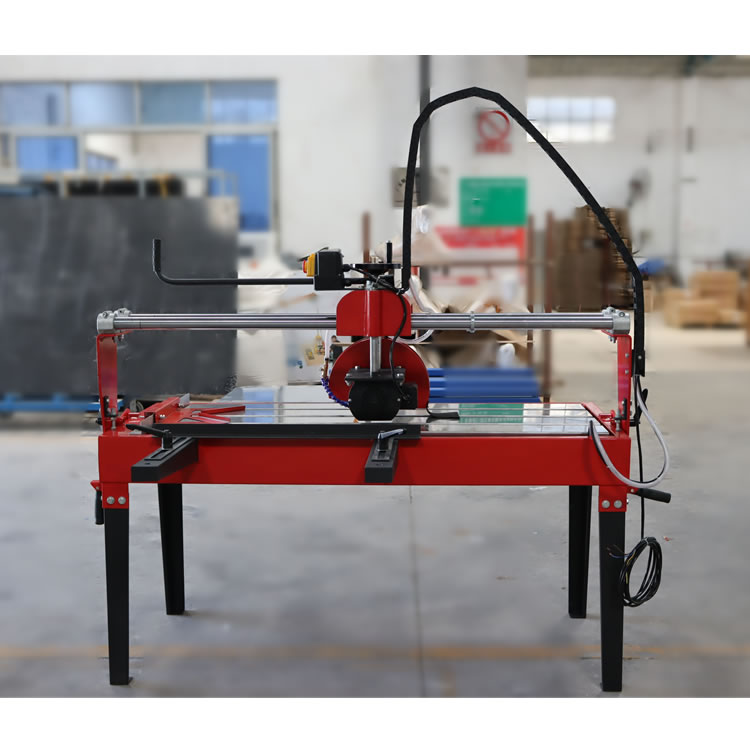

Portable cutting machine
This machine is specially designed for marble, inds of stone to provide professional cutting effect.?Aluminum alloy head, bearing steel rod guide rail, stainless steel table, thickened body.?Simple and reasonable design, built-in water pump, automatic water environmental protection operation.?Easy to install, simple to operate, removable, removable feet.?With 45° Angle cutting function.
Please call 86-0757-22818555 for information and order Consult
TECHNICAL PARAMETERS
| 型號 Model NO. | BN-H800M | BN-H1200M |
| 功率 Power | 2.2kw/3HP | 2.2kw/3HP |
| 電壓/頻率 Voltage/Frequency | 220V/380V 50/60Hz | 240V/380V 50/60Hz |
| 鋸片外徑 Blade Diameter | Φ250-300mm | Φ250-300mm |
| 鋸片內徑 Blade Diameter | Φ25.4-50mm | Φ25.4-50mm |
| 轉速 RPM of Blade | 2800-3400 | 2800-3400 |
| 切割長度 Cutting Length | 800mm | 1200mm |
| 切割深度 Cutting Depth | 70mm | 70mm |
| 倒角 Bevel Cutting | 0-45° | 0-45° |
| 凈重/毛重 Net Weight/Gross Weight | 130kgs/160kgs | 145kgs/180kgs |
| 包裝尺寸 Package Dimensions | 1330×810×320mm 540×480×300mm | 1330×810×320mm 540×480×300mm |
